Electric Mini Clock Movement - 1/2"

These movements look identical to the standard series of mini clock movements, with the exception that these run on 110 V. Dimensions 54.0 mm (2-1/8") (H) x 54.0 mm (2-1/8") (W) x 15.9 mm (5/8") (D). Supplied with the electric cord. "I" shaft diameter is 7.9 mm (5/16"). Rear set. Movement is supplied with a 1.83 M (6') power cord. This movement is for a dial up to 12.7 mm (1/2" thick). The threaded shaft A) measures 14.3 mm 9/16" and the overall length of the shaft or total shaft height is 22.2 mm or 7/8". The sweep hand has a stepping motion. Movements are supplied with hardware. Hands are not included. For hour and minute hands choose from Style "A". Choose from Style "A" sweep hands.

*Hands are not included.

Product Details

Order # :

• 74-747

Max Dial Thickness:

• up to 12.7mm (1/2")

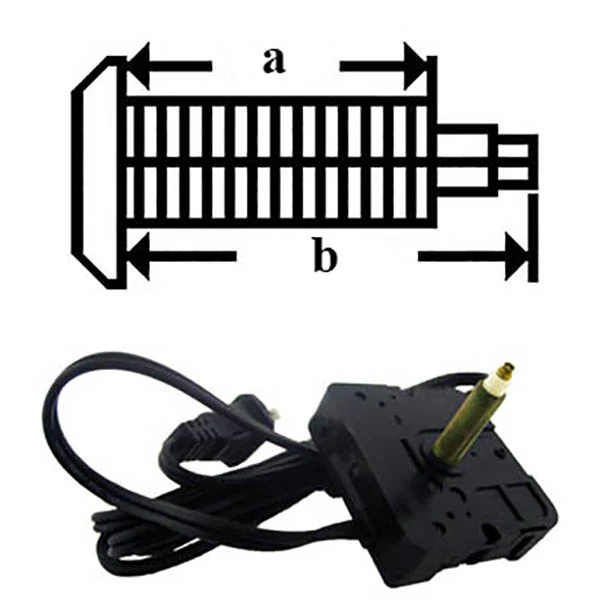

Threaded Shaft (a):

• 14.3mm (9/16")

Overall Length (b):

• 22.2mm (7/8")
